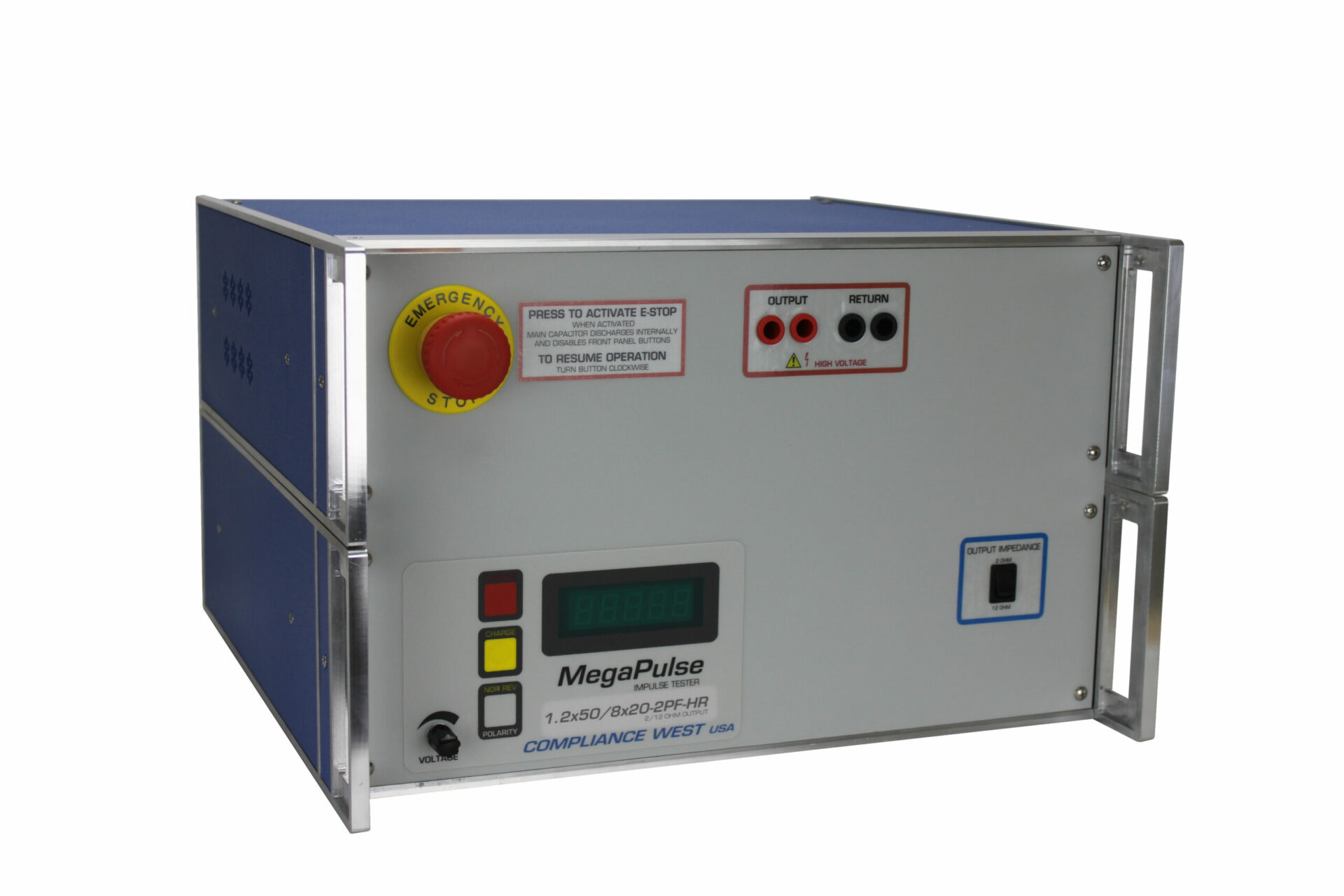

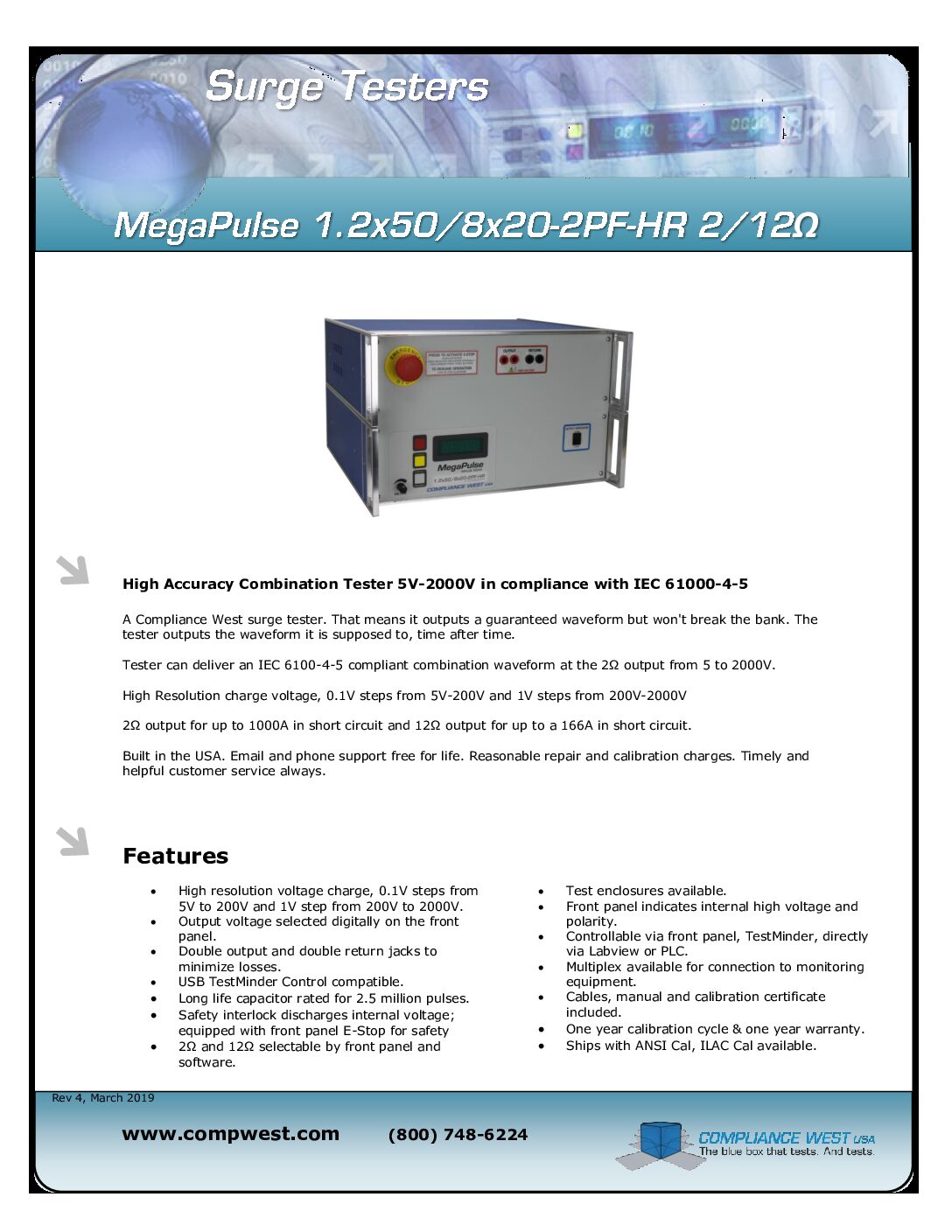

The MegaPulse 1.2×50/8×20-2PF-HR 2/12 ohm is our 5V-2000V, 2.5A-1000A combination tester. It produces a combination test waveform in compliance with EN 61000-4-5 at extremely low voltage, with high accuracy and repeatability.

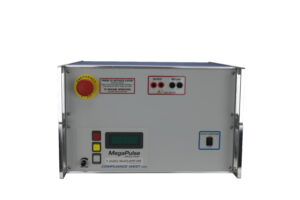

The Tester features a High Resolution charge voltage in steps of of 0.1V from 5V-200V and steps of 1V from 200V-2000V; 2 Ω and 12 Ω outputs, Output Polarity Switch, with front panel E-Stop switch and Safety Interlock Discharge; with waveform outputs in accordance with IEC 61000-4-5.
The MegaPulse 1.2×50/8×20-2PF-HR 2/12 ohm charges in less than 5 seconds and can pulse every 20 seconds continuously.
Available MUX and DUT Test enclosure options allow integration into an existing Test Station under PLC, TestMinder or LabView control (see below).
Users may opt for computer control via our option TestMinder MegaPulse PF, PLC guided operation with our Relay Isolated Control board, or directly via third party software via USB/RS232.
Sold with a one year warranty and calibrated to NIST Standards. ILAC/17025 Cal available.
