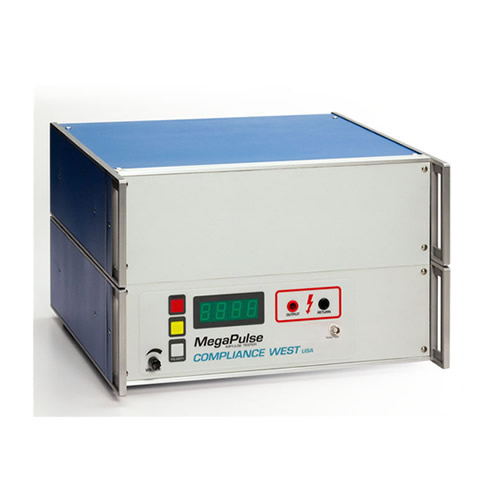

The MegaPulse 1.2×50/8×20-6PF 2 ohm is our 6kV, 3kA combination tester, with a 30 second cycle time. It can produce a combination test waveform at 2 ohms 6kV, in tolerance with EN 61000-4-5.
Built to the requirements of IEC 61000-4-5, Section 6, Para. 6.1.1.
The MegaPulse 1.2×50/8×20-6PF 2 ohm features ungrounded outputs, and is acceptable for powered testing when used with a suitable CDN.
Phase control allows pulse insertion at 0-360 degrees on the AC power waveform for powered testing.
The MegaPulse 1.2×50/8×20-6PF 2 ohm is equipped with a relay allowing switch selected polarity output. With the switch selected polarity output, users may opt for computer control via our option TestMinder MegaPulse PF, or PLC guided operation with our Relay Isolated Control board.
The tester charges in less than 60 seconds in accordance with the requirements stated in IEC 61000-4-5. Sold with a one year warranty and calibrated to NIST Standards. A2LA Cal available at extra charge.
Waveforms can be viewed in the Manuals Section below.
2000V/1000A peak, GR-1089 1st Level AC Lightning, and others requiring powered pulse insertion at specific areas of the mains waveform in accordance with IEC 61000-4-5. IEC 61000-4-5 CDN required when used for powered testing. 6000V/3000A peak, GR-1089 2nd Level AC Lightning and others. CDN required for powered testing.
