Medical Breakout Box

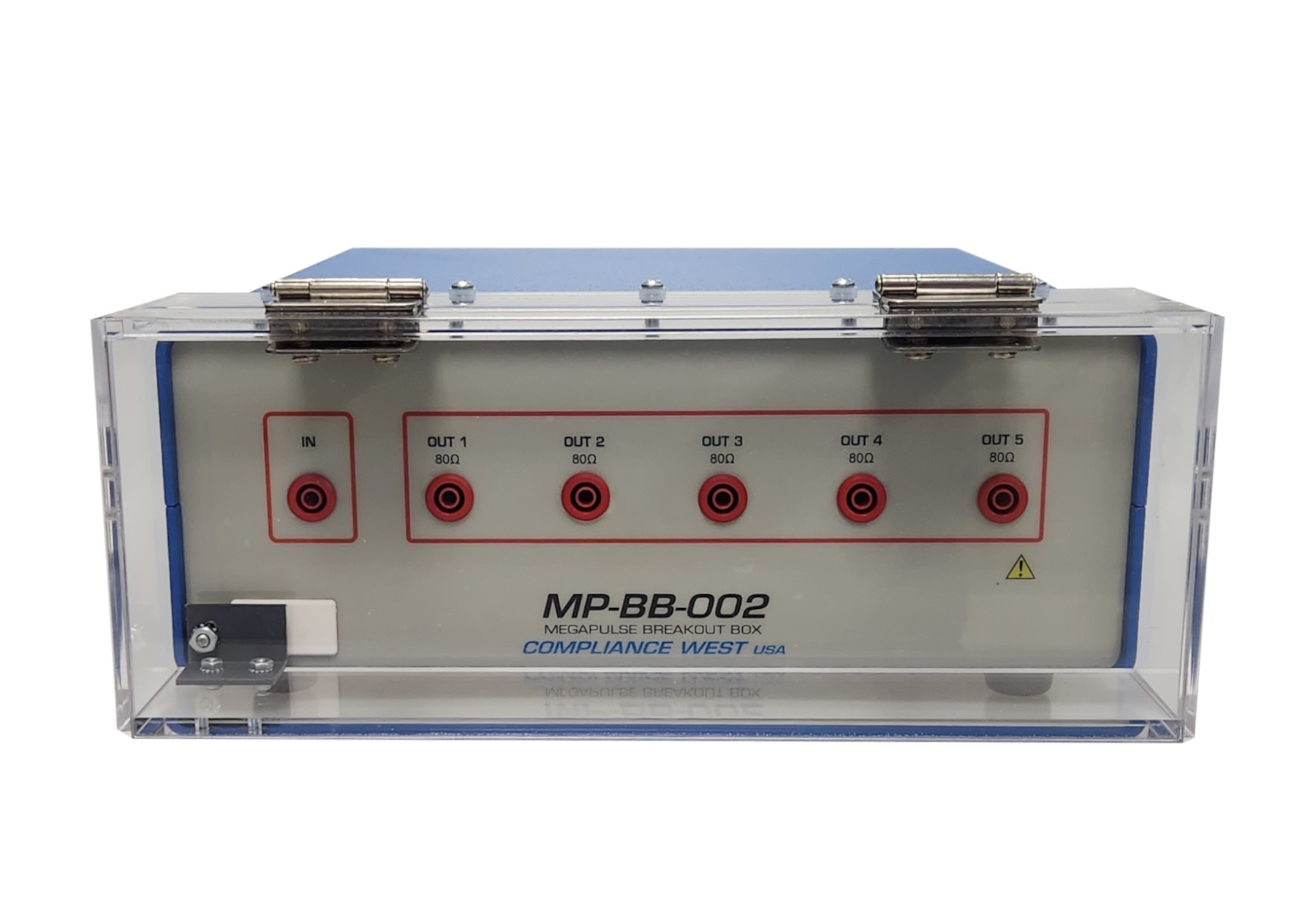

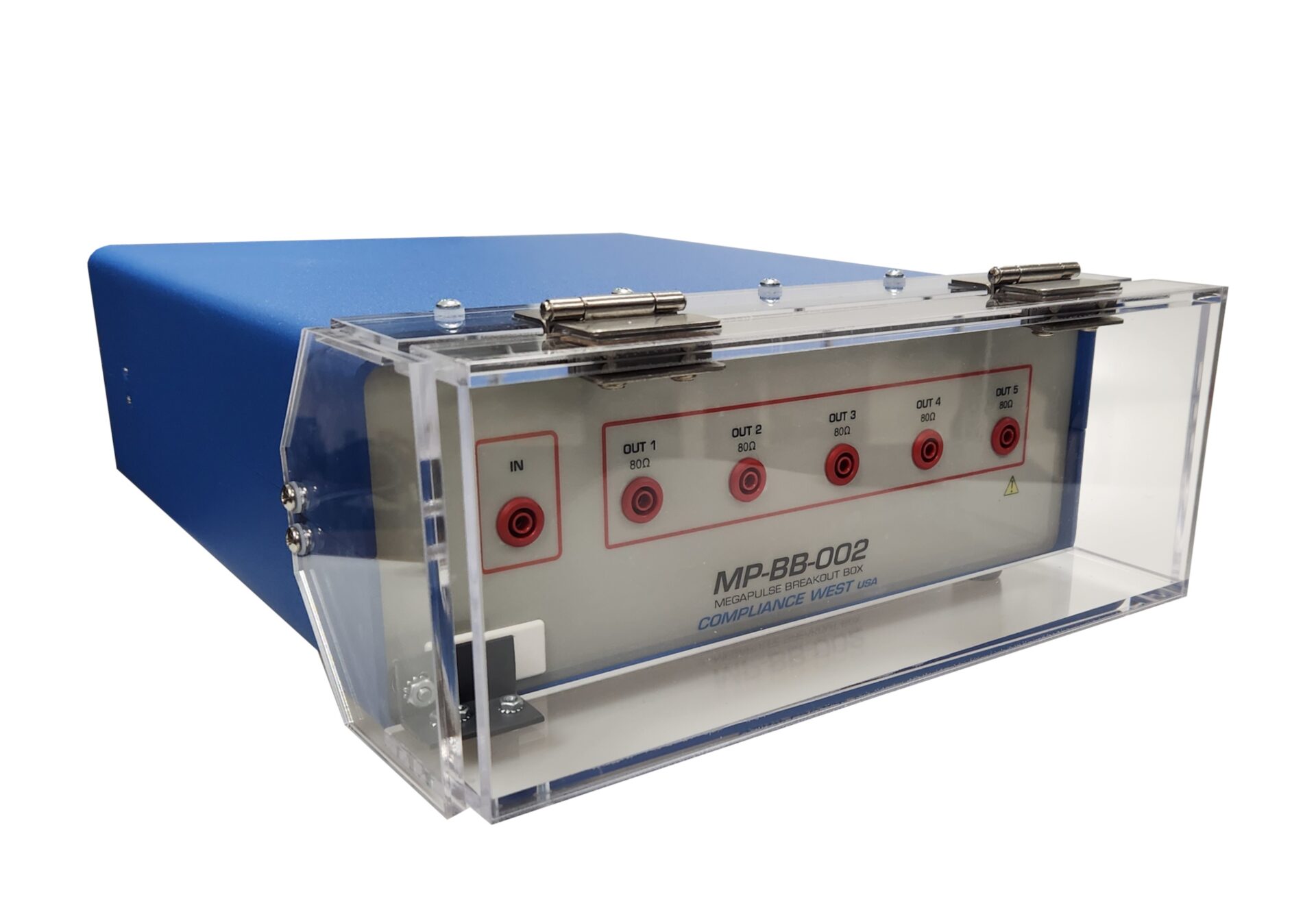

The MP-BB-002 is a breakout box for MegaPulse Defib-5PF-005 medical impulse tester.  The MP-BB-002 allows the user to connect all the leads from the device under test to the test equipment.  The MP-BB-002 allows all SIP/SOPs to be connected easily between the device under test and the medical impulse tester.  Each output have an internal impedance of 80Ω. The front panel has an interlocked plexiglass cover for safety, with the interlock connections on the rear panel of the MP-BB-001.  The interlock can be connected to medical impulse tester interlock, which will inhibit testing while the plexiglass door is open. A High Voltage test lead and interlock cable are included to connect the impulse tester to the Breakout box.
