HT-3000P AC 1A V2:

SKU: 00-3000PAC-1A V2

Hipot Tester
3000Vac @ 1A max continuous duty
No ramp, No arc detection

Call for Price

Designed & Built in the USA

  • 1-Year Warranty
  • 100% Secure Checkout
Guaranteed Safe Checkout

Questions? Request a Call Back

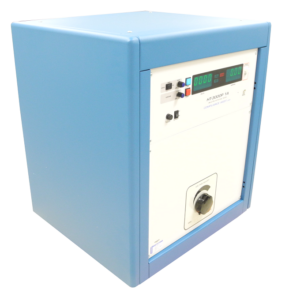

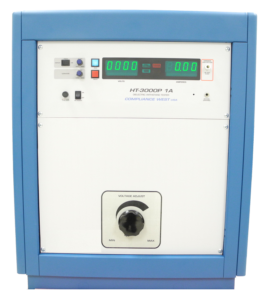

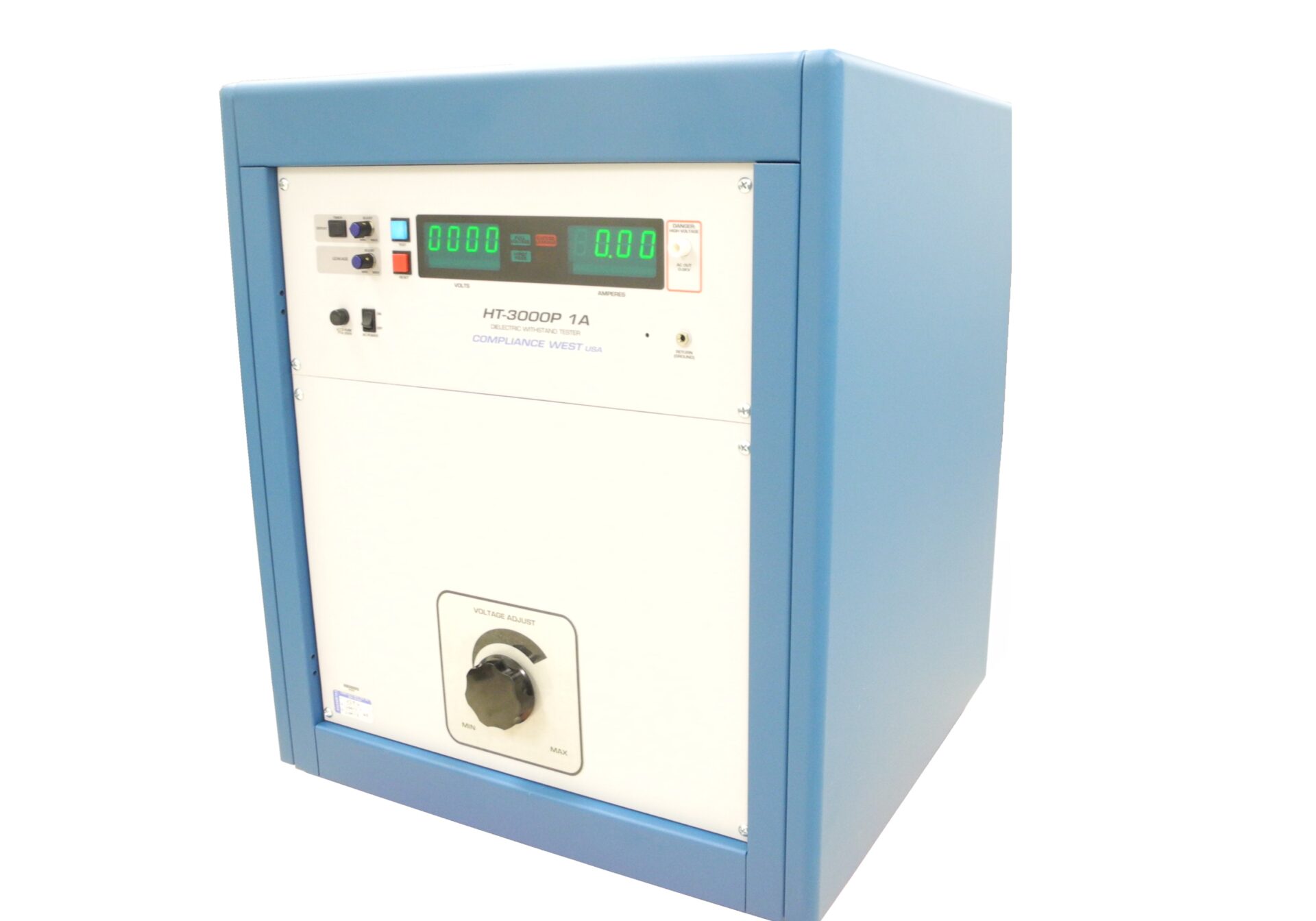

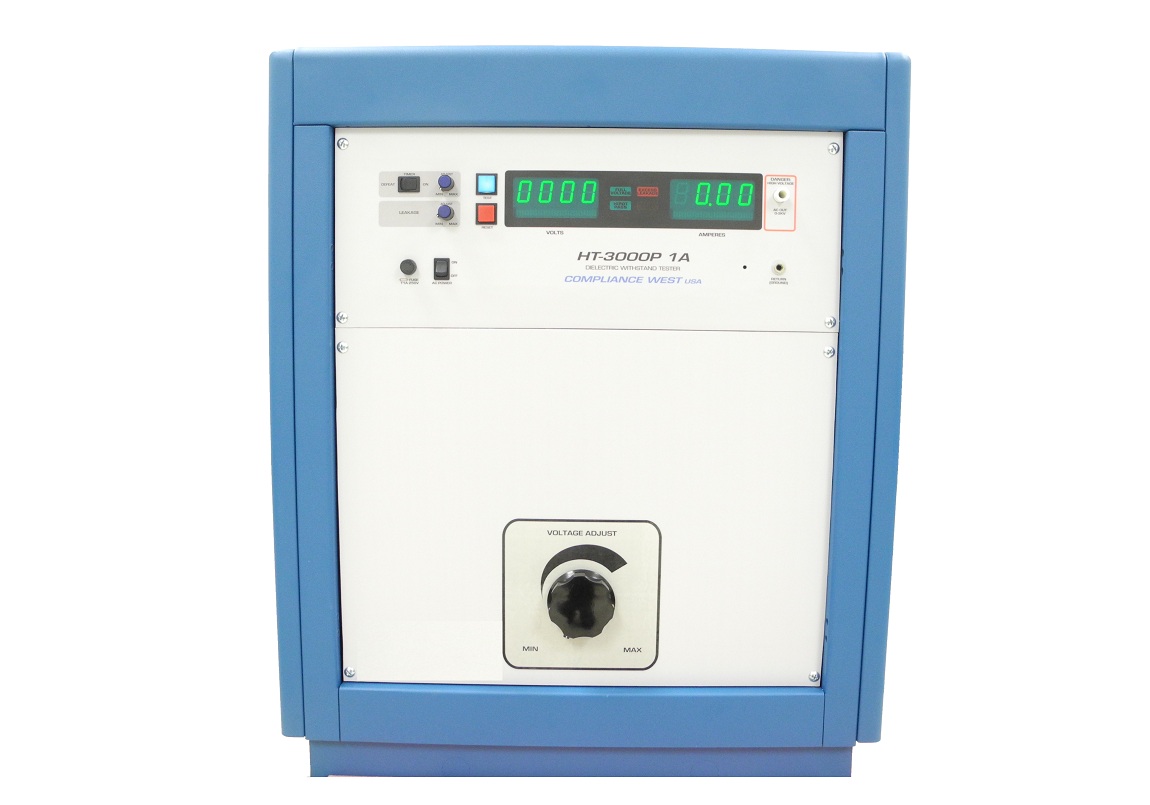

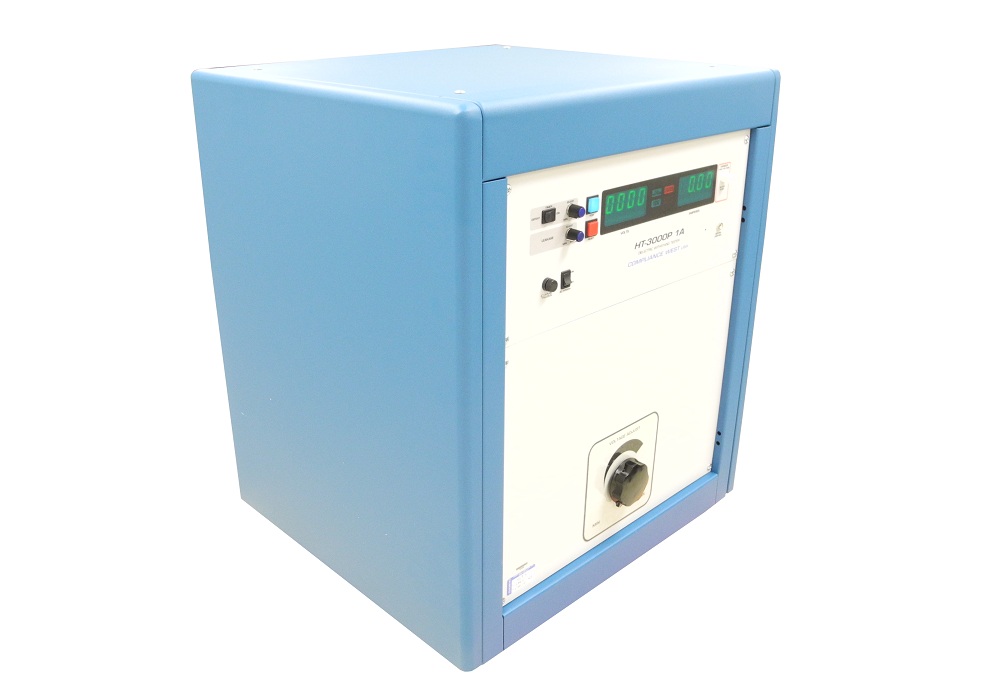

Our HT-3000PAC-1A V2 is an AC only hipot tester with an output up to 3000V and leakage current up to 1A. Not only powerful but safe, the main shutdown switch is strategically located on the front panel. 1A max continuous duty, no ramp, no arc detection. Advanced micro-controller technology allows for easy 1-button testing. Made in the USA. Calibration certificate and 1yr warranty included. Not sure – contact us!

Features

  • Leakage current up to 1000 mA.
  • Microcontroller technologies, one button test, easy to setup, LED’s indicates test in progress. Upon failures buzzer sounds and testing is terminated.
  • Output voltage, Leakage current and test duration are controlled in the front panel.
  • Test timer is defeatable.
  • Zero voltage start included.
  • Optional very sensitive breakdown detection circuit.
  • One year calibration cycle.
  • Main shutdown switch in front panel for safety.

Specifications

Voltage Range 0-3000 VAC
Current Range 30-1000 mA
Input Voltage Requirements 240 V, 50 /60 Hz
Arc Detect Separate high Frequency circuit
Leakage Detect Separate Low frequency circuit
Test Time Range 1 – 60 seconds Defeatable
Voltage Meter Accuracy ± 2 % ± 1 count
Current Meter Accuracy ± 2 % ± 1 count
Duty cycle 100%
Discharge Time < 1S
Transformer Output > 500 VAC
Display 4 digits LED display
Test indicator Led indicators
Failure Indicator Led indicators and buzzer
Programable No
PLC Interface No
TestLink No
Testminder No
Test Defeat Test time
Operation Temperature 15 – 40 °C
Relative Humidity Range 0 – 90 % Non-condensing
Dimensions 24″ wide x 30″ high x 22″ deep
Weight 215Lbs
Calibration One year calibration Certificate

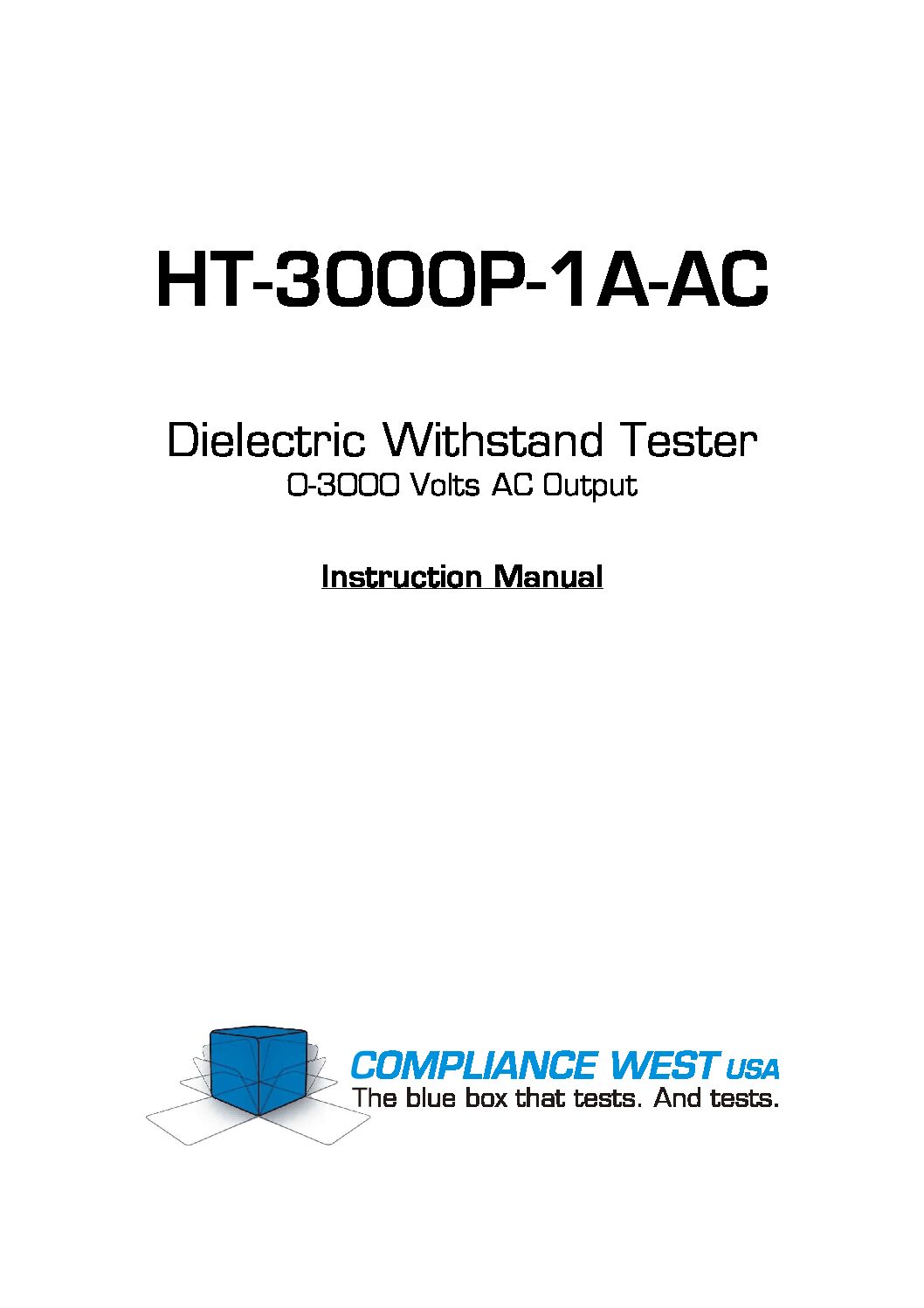

Manuals
