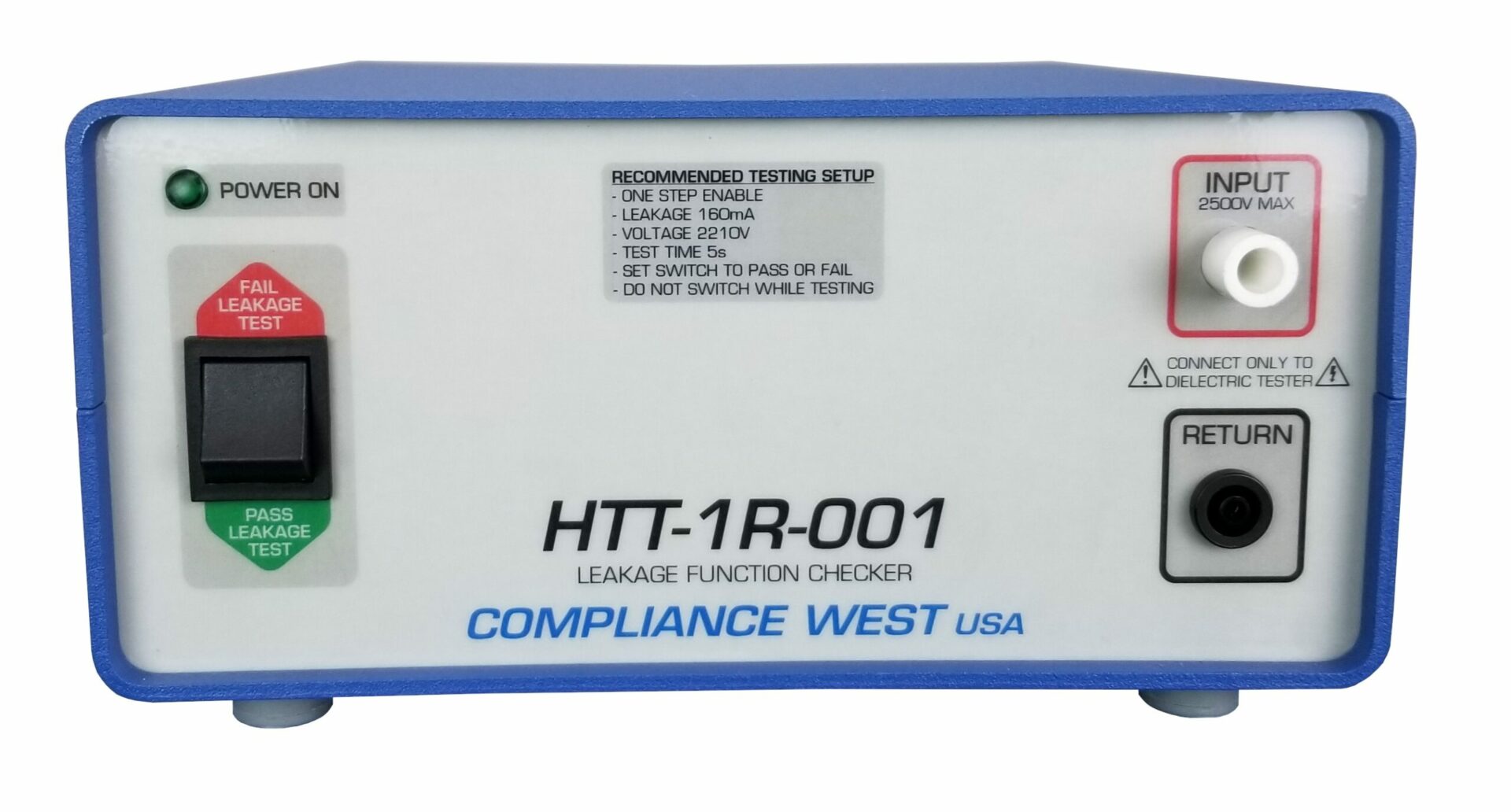

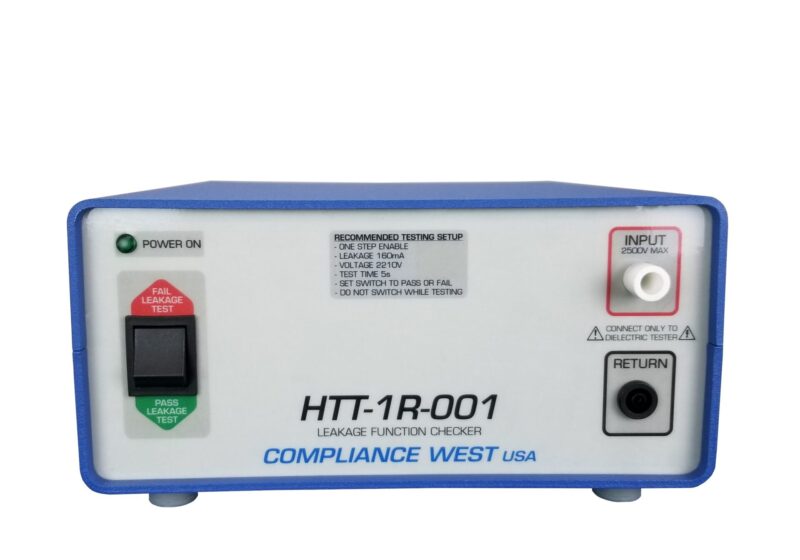

The HTT-1R-001 provides a fast, safe and reliable way to verify proper operation of Leakage Detection Circuit between calibration cycles. It uses actual load to simulate passing and failing results to exercise the tester, and is designed to be used as a verification test fixture in compliance with the requirements for shift by shift Inspection Report.
The test leads allows connection of the HTT-1R-001 to our HT-5000P AC DC 200mA. The maximum voltage the HTT-1R-001 can test is 2500Vac/3500Vdc.
Leakage (Pass 22.10kΩ, Fail 12.27kΩ)
Set your tester leakage setting to 160mA, select Pass or Fail and increase voltage output to 2210V ac to verify the good leakage functionality of your tester.
We offer custom solutions if different pass and fail values are required.
