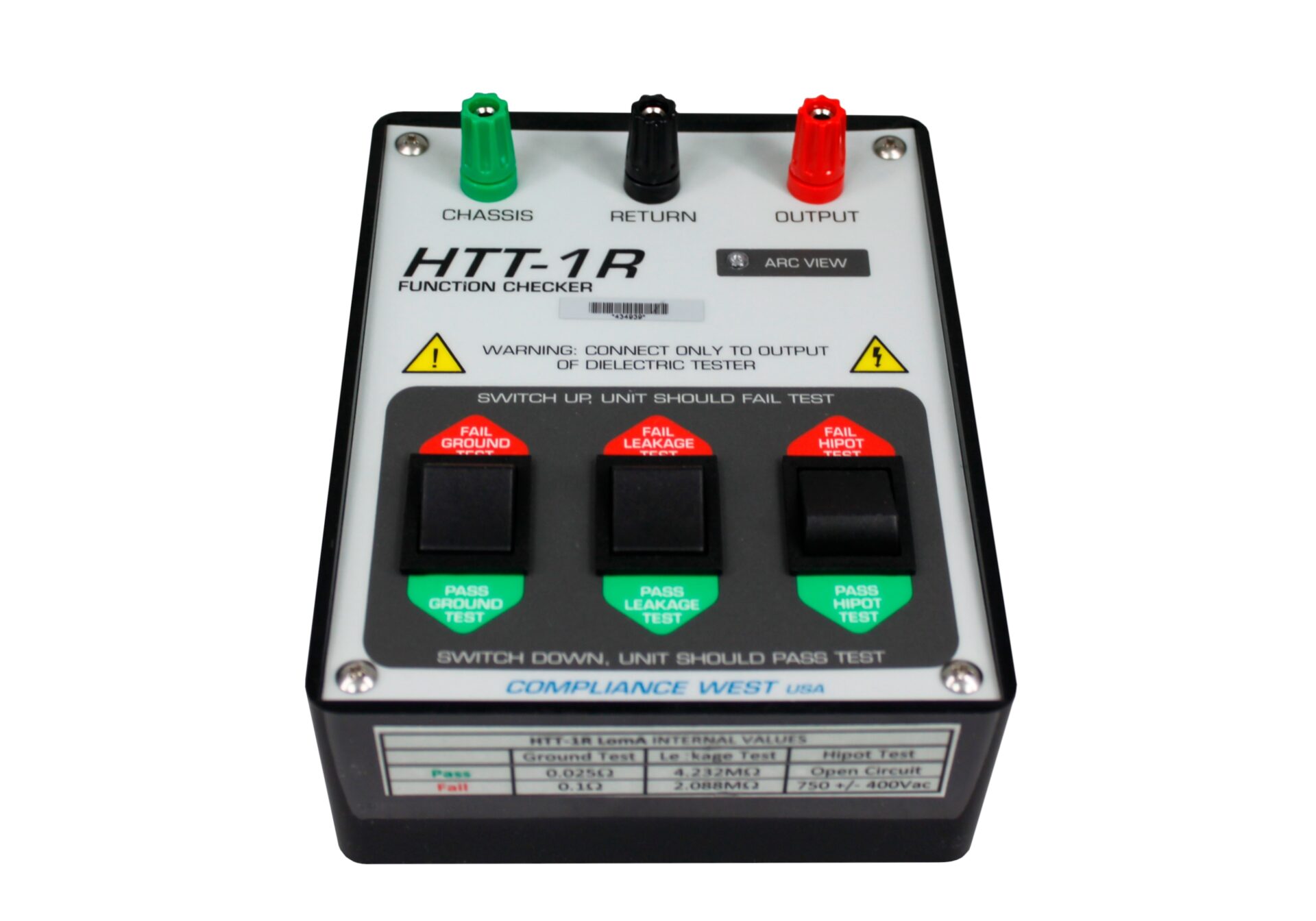

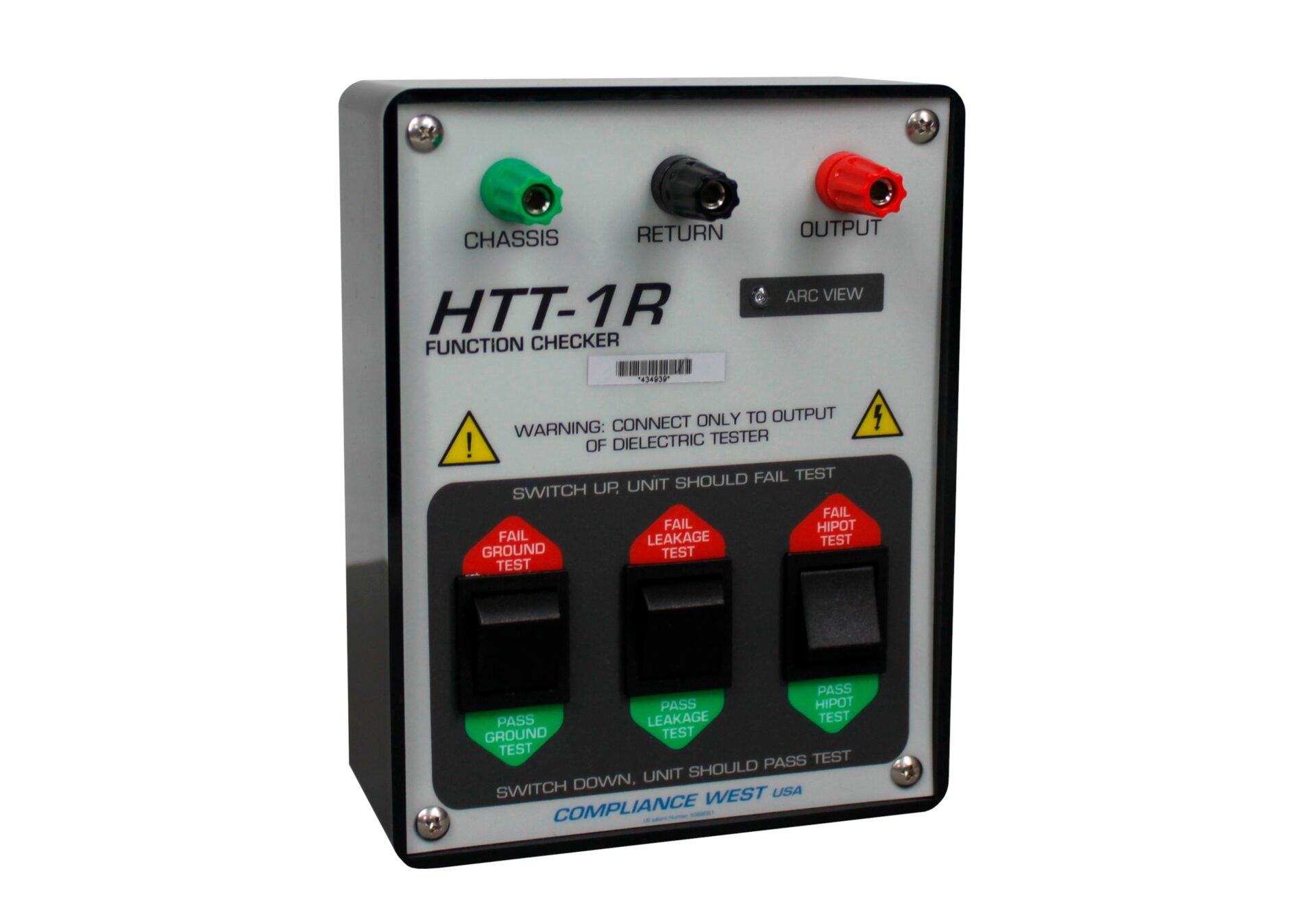

The HTT-1R provides a fast, safe and reliable way to verify proper operation of Dielectric Withstand (hipot) and Ground Continuity/Ground Bond Testers between calibration cycles, in accordance with requirements of TUV and other European agencies. It uses actual loads to simulate barely passing and barely failing results to exercise the tester(s), and is designed to be used as a verification test fixture in compliance with the requirements for shift by shift verification stated in ECS CIG-023 Inspection Report, Section 4. See the Manuals Section below for an example of the CIG-023 Inspection Report.
It allows the operator to check the result of the three failure modes encountered in production hipot and ground circuit testing (open ground, high leakage current, and dielectric breakdown) separately or in any combination to verify proper test equipment operation. A passing test is also simulated.
The test leads allows connection of the HTT-1R to any hipot tester using a standard NEMA 15A receptacle, or use the leads on the hipot and ground tester to connect directly to the HTT-1R. The manual contains anticipated results and suggests testing procedures. The maximum voltage the HTT-1R can test is 3000Vac/4200Vdc.
The HTT-1R Family has ranges suitable for many scenarios, you can also contact us for custom values.
Features
The HTT-1R Loma simulates the following failures:
Ground Continuity Chassis to Ground (0.01Ω), and/or
High Leakage Line to Ground (2.088MΩ), and/or
Dielectric Withstand Failure (Arc View window displays an arc at 750Vac ± 400V).
The HTT-1R can also be set to simulate passing tests:
Ground Continuity Chassis to Ground (0.025Ω), and/or
Normal Leakage Line to Ground (4.232MΩ), and /or
Dielectric Withstand OK (up to 3000 volts)
Arc Testing is at 750 ± 400Vac. Results visible through Front Panel Window.

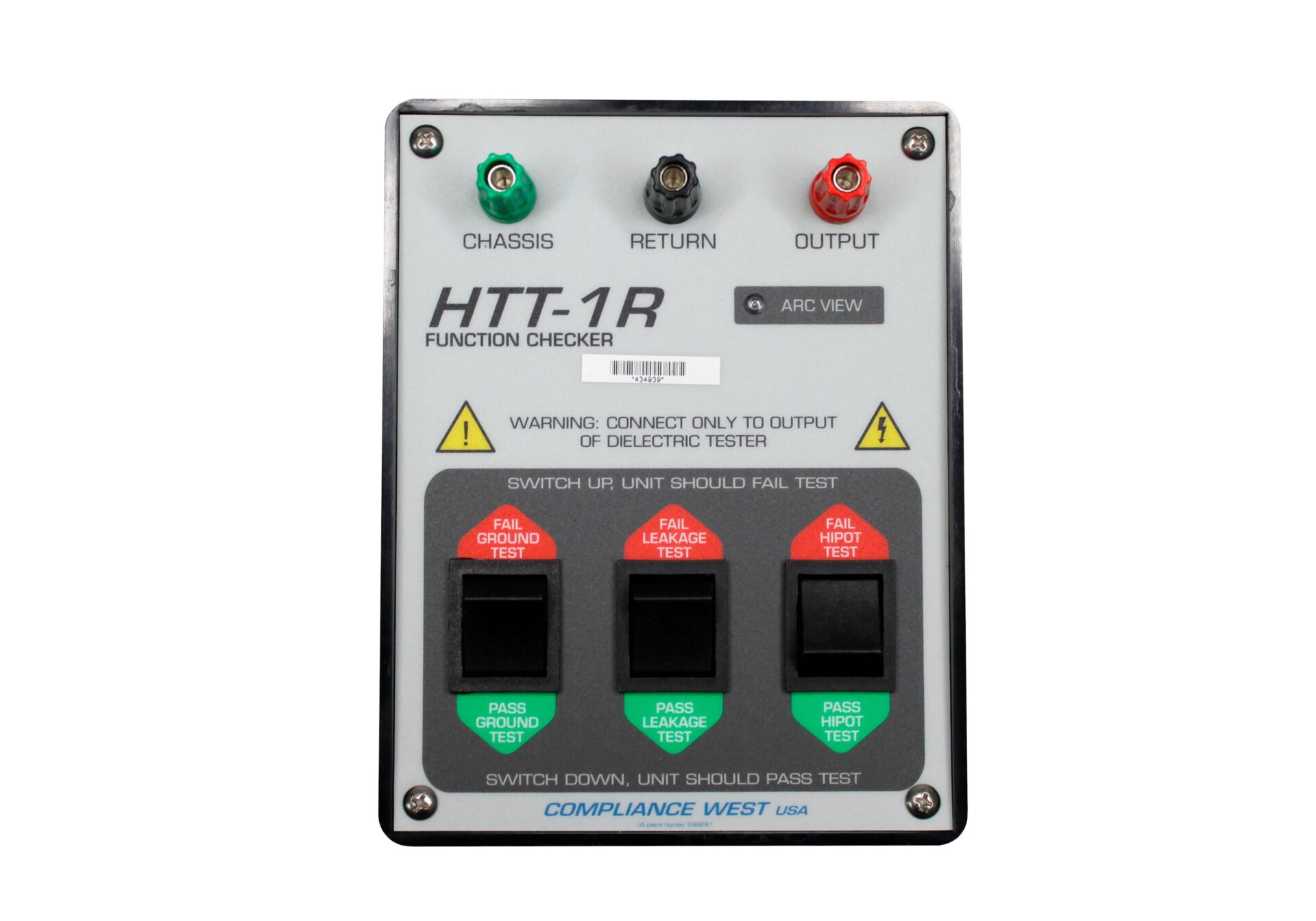

Works with any manufacturer’s Dielectric Withstand or Ground Continuity Tester. The HTT-1R simulates the failures and your tester should return results consistent with the switch settings on the front panel of the HTT-1R
The HTT-1R is a passive device. No batteries or power is required.
Verifies proper operation of your equipment in less than a minute.
Portable.
Light weight.
Simple to operate.
Saves time.
For testing of Ground Bond Testers up to 30A..
1 year warranty.
Specifications
GROUND BOND
Ground Bond Test PASS Setting: 0.025Ω. *
Ground Bond Test Fail Setting: 0.1Ω *
Ground Bond Circuit Rating: 30A
Ground Bond Circuit Duty Cycle: <10A Continuous, >10A 3s test followed by 10s rest.
BREAKDOWN
Arc Test PASS Circuit: Open circuit.
Arc Test FAIL Circuit: Arc over 750Vac ±400Vac / 1050Vdc ±560Vdc
Arc Circuit Voltage Rating: 3000Vac/4200Vdc max.
LEAKAGE
Leakage Current: Four standard circuits are available: LomA, MedmA, HimA and ExmA.
Custom values configuration available, contact us for details.
Option LomA
Leakage Current PASS: 4.232MΩ ±5%. Volt. dependent. Example: 0.5mA at 2100Vrms; 0.35mA at 1500Vrms.
Leakage Current FAIL: 2.088MΩ ±5%. Volt. dependent. Example: 1.0mA at 2100Vrms; 0.72mA at 1500Vrms.
Option MedmA
Leakage Current PASS: 848kΩ ±5%. Volt. dependent. Example: 2.48mA at 2100Vrms; 1.77mA at 1500Vrms.
Leakage Current FAIL: 424kΩ ±5%. Volt. dependent. Example: 4.95mA at 2100Vrms; 3.53mA at 1500Vrms.
Option HimA
Leakage Current PASS: 424kΩ ±5%. Volt. dependent. Example: 4.95mA at 2100Vrms; 3.53mA at 1500Vrms.
Leakage Current FAIL: 200kΩ ±5%. Volt. dependent. Example: 10.5mA at 2100Vrms; 7.50mA at 1500Vrms.
Option ExmA
Leakage Current PASS: 220kΩ ±5%. Volt. dependent. Example: 9.54mA at 2100Vrms; 6.82mA at 1500Vrms.
Leakage Current FAIL: 120kΩ ±5%. Volt. dependent. Example: 17.5mA at 2100Vrms; 12.5mA at 1500Vrms.
*Note: Connection resistance to the ground bond tester can add up to 0.03Ω to the actual test value.
**Note: Vrms values are the values read on the meter of the hipot tester when set to either ac or dc.
